Polaris Sportsman 550 X2 2010-14 Winch and Mount Kit KFI SE35 Stealth

KFI Products
101740+SE35
$356.57

customers are viewing this product

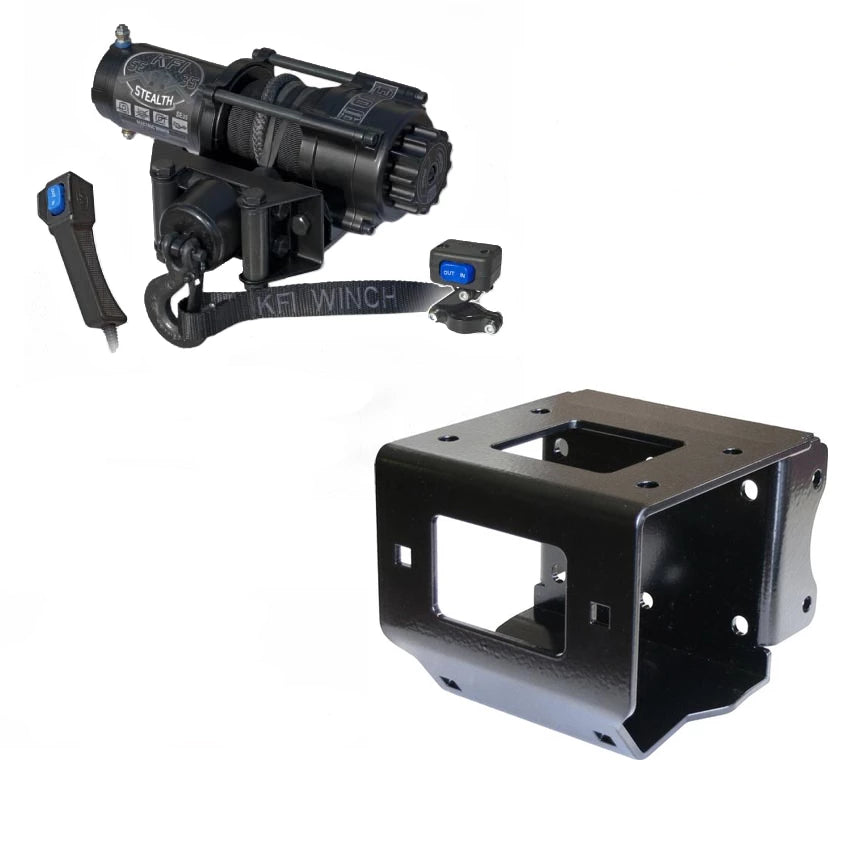

Polaris Sportsman 550 X2 2010-14 Winch and Mount Kit KFI SE35 Stealth

We designed this winch and mount kit to take the guess work out of adding a winch to your machine. This combo kit fits multiple years and models of Polaris Scramblers and Sportsman's, and includes everything needed to install the winch kit. It does not use the OEM Polaris Harness.

This KFI Se35 Stealth Winch Mount Combo for Polaris Sportsman and Scrambler can be fitted to the following Polaris ATV's:

Scrambler 850 '13-22
Scrambler 1000 '14-18
Sportsman ETX '15-16
Sportsman 400 '11-14
Sportsman 450 '16-22
Sportsman 450 Utility Edition (!!! SEE NOTE X Below) '21-22
Sportsman 500 '11-13
Sportsman 500 Touring '11-13
Sportsman 550 (XP) '09-14
Sportsman 550 Touring '10-14
Sportsman 550 X2 '10-14
Sportsman 570 (Base/SP/EFI) '14-22
Sportsman 570 EPS (Base/Utility) '14-20
Sportsman 570 EPS  (!!! SEE NOTE X Below) '21-22
Sportsman 570 Premium 2020
Sportsman 570 Premium  (!!! SEE NOTE X Below) '21-22
Sportsman 570 Utility HD LE  (!!! SEE NOTE X Below) '21-22
Sportsman 570 Touring '14-22
Sportsman 570 X2 '15-22
Sportsman 800 '11-14
Sportsman 850 (XP, Highlifter) '09-22
Sportsman 850 Touring '10-22
Sportsman 850 X2 2011
Sportsman 1000 XP '15-22
Sportsman 1000 Touring '15-22
Sportsman 6x6 Big Boss '11-22


NOTE X:Bumper Conversion Bracket #101895 will need to be purchased in order to reinstall OEM Polaris Front Bumper (See Below)

  • Even if the machine does not come factory with the front bumper but you plan on adding the bumper to your current year Polaris Sportsman, the conversion bracket will be required

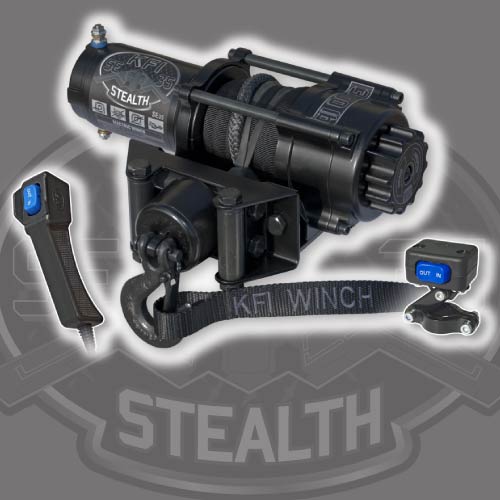

KFI SE35 Stealth Winch Description

Whether its on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your ATV, UTV or SxS with a KFI WINCH and feel confident you can pull yourself out of any situation. This 3500 lb ATV Stealth Series winch features Synthetic Cable, Cable Hook Stopper, a dynamic and mechanical braking system, Water Resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty all metal turn clutch. It is also backed by a KFI 1-Year Limited Warranty. The KFI SE35 Stealth Winch comes with everything you need other than an ATV model specific winch mount. Everything shown is included along with detailed installation instructions and hardware to mount your winch to the included model specific ATV winch mount.

Winch Kit Includes:

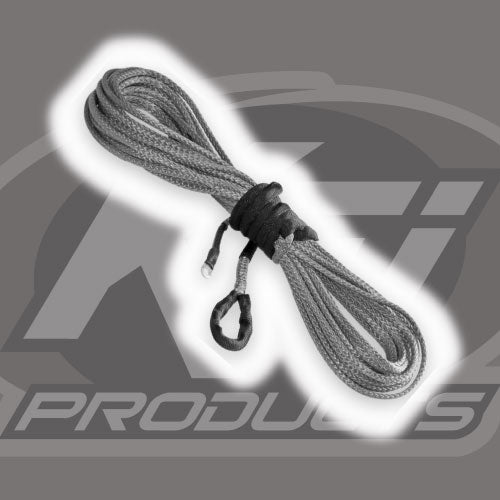

50' Synthetic Cable with 5' protective sheath and end loop

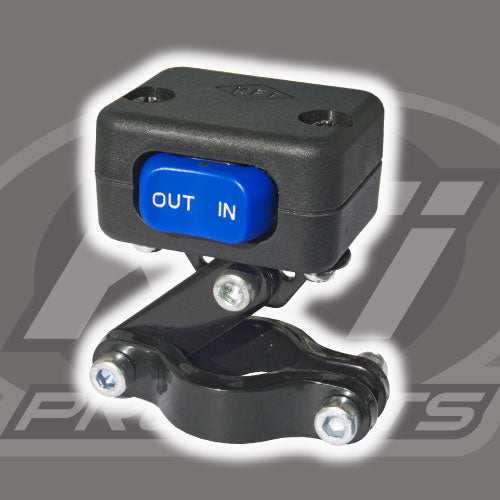

Mini-Rocker Switch that comes with an adjustable bracket to mount it to your ATV's
handle bars and allows you to control your winch with the touch of your finger without

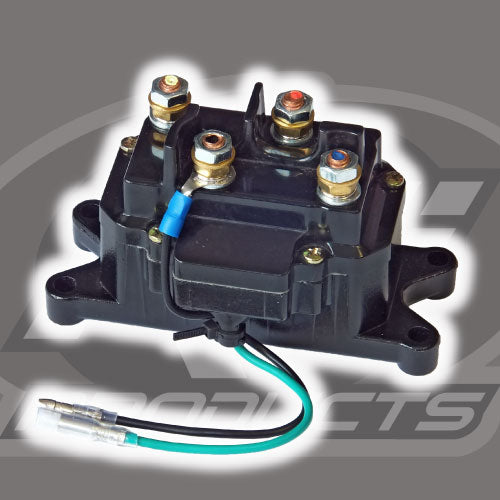

ever letting go of your handle bars. The included Heavy Duty Electric Contactor
protects your ATV's electrical system and switches the power distribution of your winch
that is controlled from your switches.

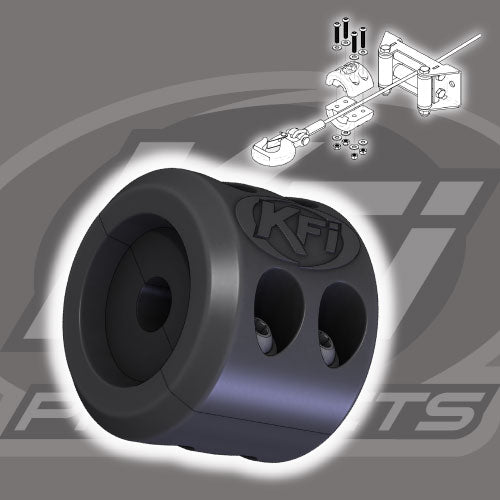

The included Cable Hook Stopper with the following benefits:

  • Eliminates wear and tear on your rollers from the hook with can cause cable wear.
  • Eliminates hook clatter from going down the trail.
  • Protects the winch motor and gears from pulling the cable in to far and bottoming out on the rollers.
  • Keeps tension on the hook to eliminate the cable becoming loose.
  • Also has slits designed in it to work as an anti-kick back for the cable if your cable was to snap.
  • Looks great.
  • Once you have one, everyone else that you ride with will want one.

SPECIFICATIONS:

Model: SE35 ATV Series
Rated Line Pull: 3500 lbs.
Motor: 12V DC, 1.5 hp Permanent Magnet
Gear Ratio: 171:1
Gear/Transmission: All-metal Planetary Gear Drive
Brake: Dynamic and Mechanical
Clutch (free spooling): All Metal Cam Activated Freespool
Drum Size: 1.5" (D) x 3.15" (L)
Synthetic Cable: 3/16" (D) x 50' (L) Smoke color
Fairlead: Multi-directional Roller
Control: Deluxe Handlebar-Mounted Mini-Rocker Control Switch

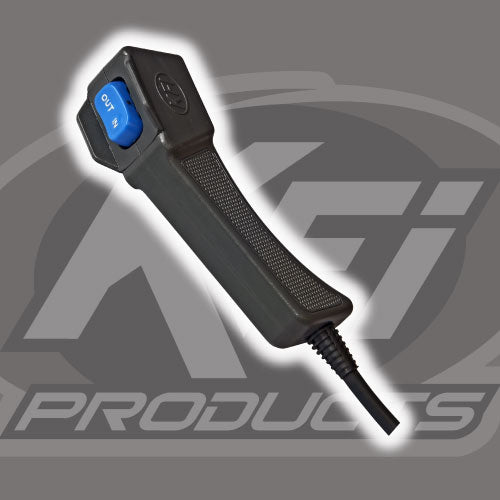

and a Heavy Duty Corded Remote Switch
Winch Dimensions: 12.97" L x 4.06" D x 4.2" H
Mounting Bolt Pattern: 3.00" x 4.875" (4-Hole)
Recommended Battery : 12 Amp/hour minimum
Warranty: Limited 1 Year
Winch Weight: 24.8 lbs. (complete kit)
